Mfitiase Nsɛm
|
Atadeɛ |
Carbon Steel, Dade a Ɛnyɛ Den, Kɔbere, Aluminium |
Nneɛma atitiriw a wɔtɔn |
Eco-adamfofa, Nsiesiei ho ka a ɛba fam, Ɔsom Nkwa Tenten |
|
Voltage a ɛwɔ ahoɔden |
220 V, 380 V |
Ɔhyew Nsesafo Type |
Tube Ɔhyew a Wɔde Sesa Nneɛma |
|
Ɔhyew a ɛsen biara a wɔde yɛ adwuma |
500 digrii (932 digrii F) . |
Flow Tumi a Ɛsen |
Wɔayɛ no sɛnea wɔpɛ |
|
Nsuo a ɛne ne ho hyia |
Ngo, Nsu, Nsuonwini, Fridge,Gas |
Adwumayɛ mu ɔhyew a ɛkɔ soro |
100 ~ 500 digrii (212 ~ 932 digrii F) |
|
Nneɛma atitiriw a ɛwom |
finned tube a ɛwɔ anim |
Waranti a wɔde ma |
1 Afe |
|
Mfiri sɔhwɛ amanneɛbɔ |
De aba |
Video a ɛrekɔ-nhwehwɛmu |
De aba |
|
Beae a wofi bae |
Guangdong, China, na ɛwɔ hɔ |
Mu duru (KG) . |
200 |
|
Brand din |
Hylita na ɔkyerɛwee |
Nsuo a Ɛsen Fam |
1.39~10 L/s |
|
Nhyɛso a Ɛsen Biara a Wɔde Di Dwuma |
Nsakrae a ɛsakra |
Nsusuwii(l * w * h) . |
Wɔayɛ no sɛnea wɔpɛ |
|
Abisadeɛ |
Mframa a ɛyɛ hyew, steam ɔhyew,Ɔhyew ne Drying |
Ɔhyew a ɛsesa no su |
Finned Tube Ɔhyew a Wɔde Sesa Nneɛma |
|
Aguade no Edin |
Ɔhyew a Wɔsɛe no a Wɔsan Yɛ |
Tube & Fin nneɛma |
Kɔbere, CuNi, Dade a ɛnyɛ den, Aluminium, carbon dade, Titanium |
|
Nneɛma a wɔde yɛ frame |
Stainless Steel, GI mprɛte, Aluminium mprɛte |
Su |
Ahoɔden a wɔde di dwuma yiye-adwumayɛ ho ka a ɛba fam |
|
Fin type |
Flat, corrugated, louvered,Tube a ɛyɛ mmerɛw |
Fin soro |
Epoxy (sika kɔkɔɔ), Blue (ɛpɛ nsu), Powder paint, Bare |
|
Nneɛma a wɔde kyekyere nneɛma |
Nnua Asɛmti |
Nsuo a ɛwɔ tube mu |
Nsuo, ammonia, glycol, Nsuo a wɔde yɛ frigye |
|
Units a Wɔtɔn |
Ade biako pɛ |
Pakete biako kɛse |
77X112X138 sɛntimita |
|
Single gross mu duru biako |
238.000 kilogram |
Nneɛma a Wɔde Yɛ Nkyerɛkyerɛmu

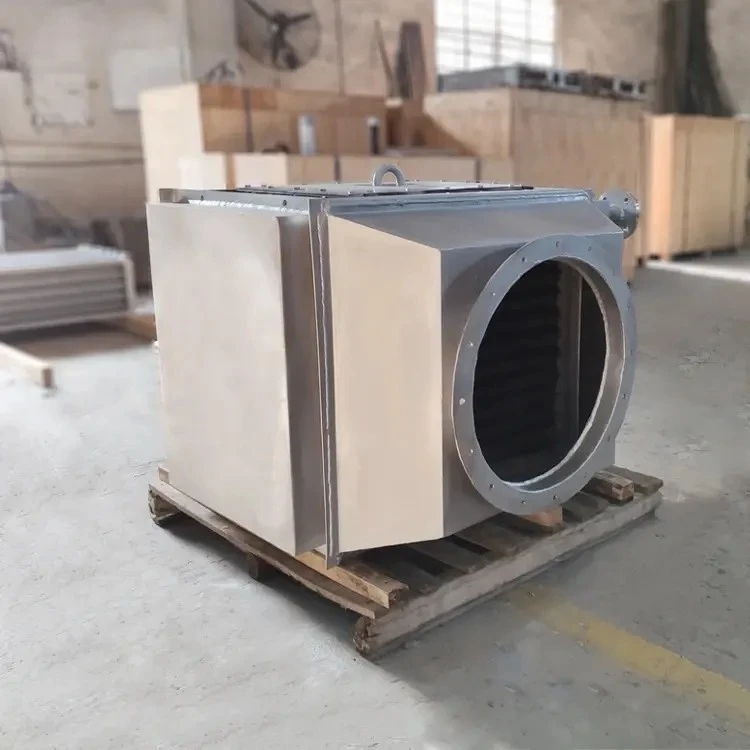

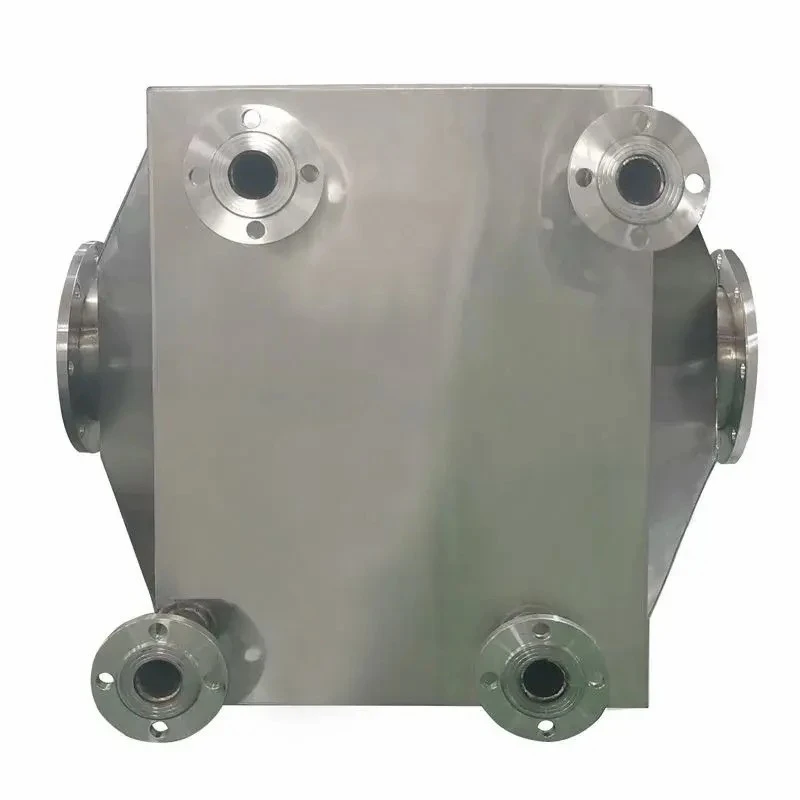

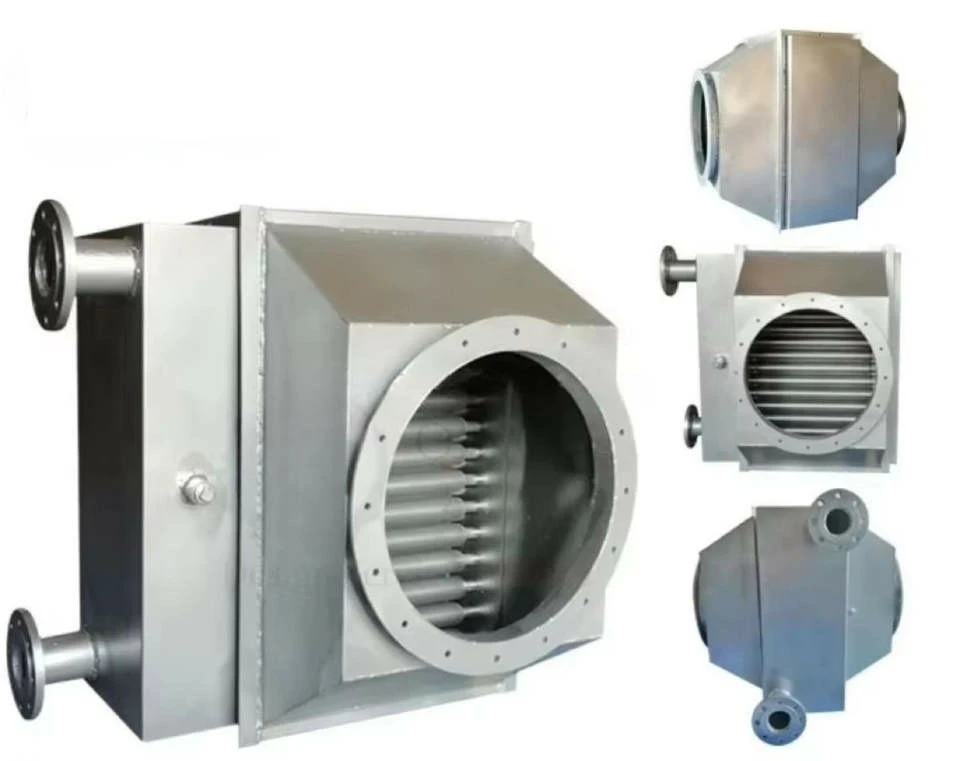

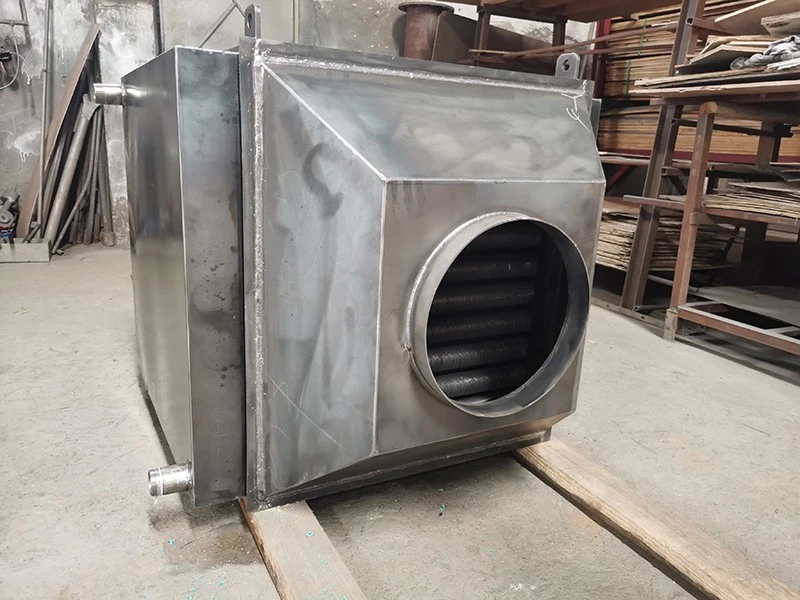

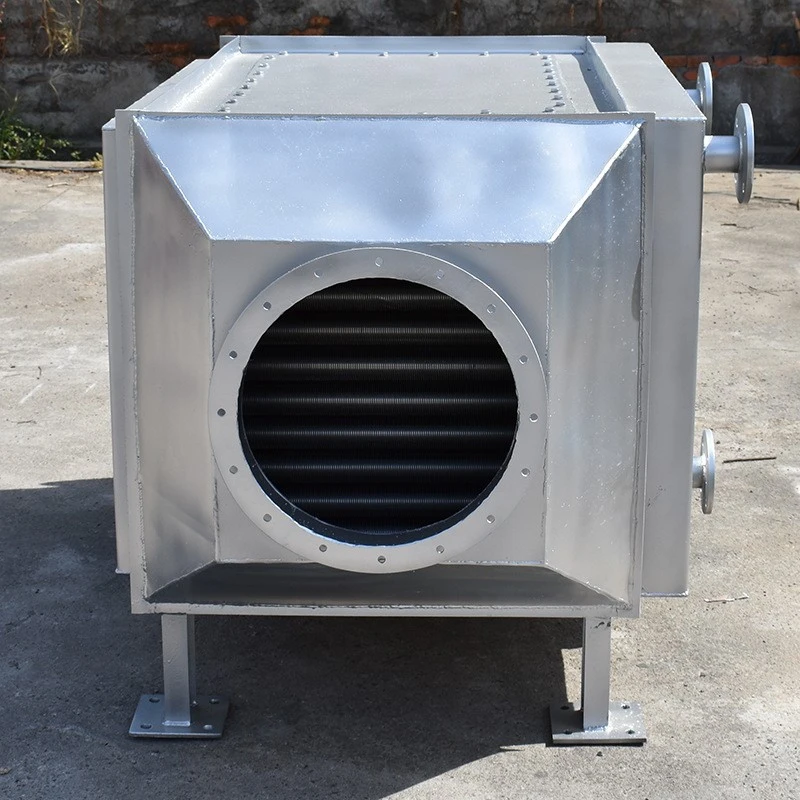

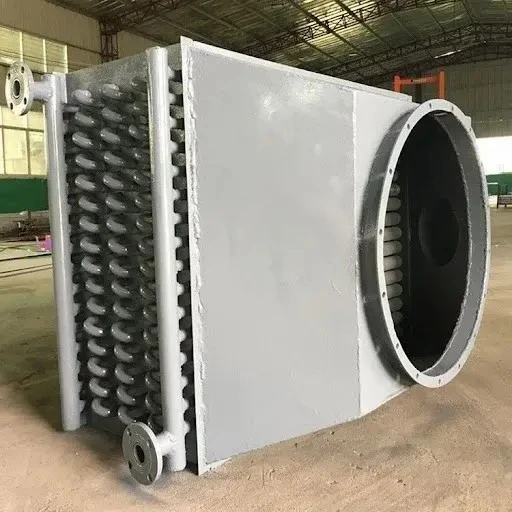

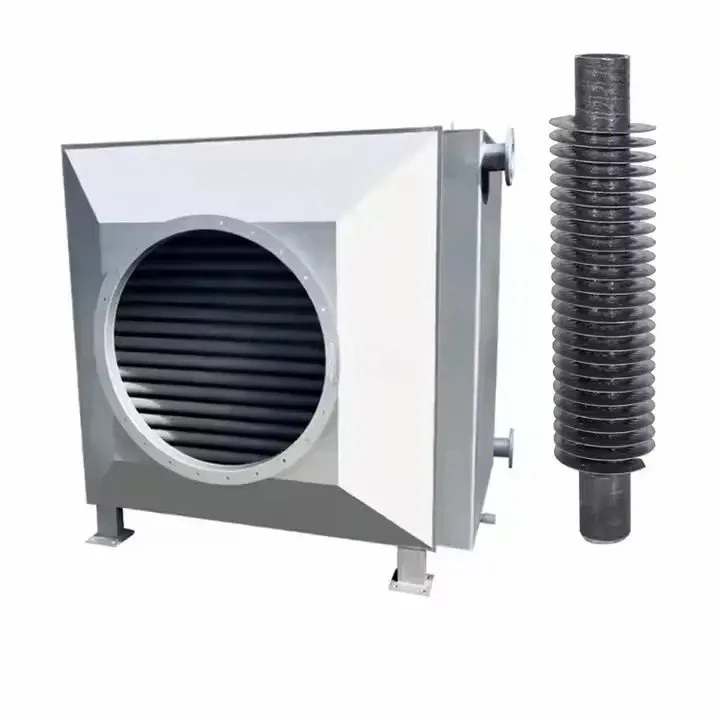

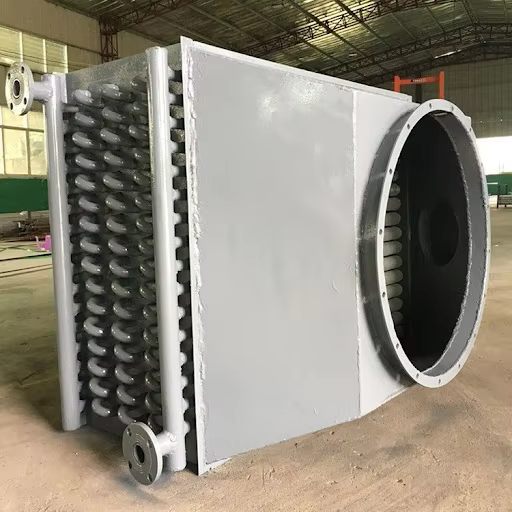

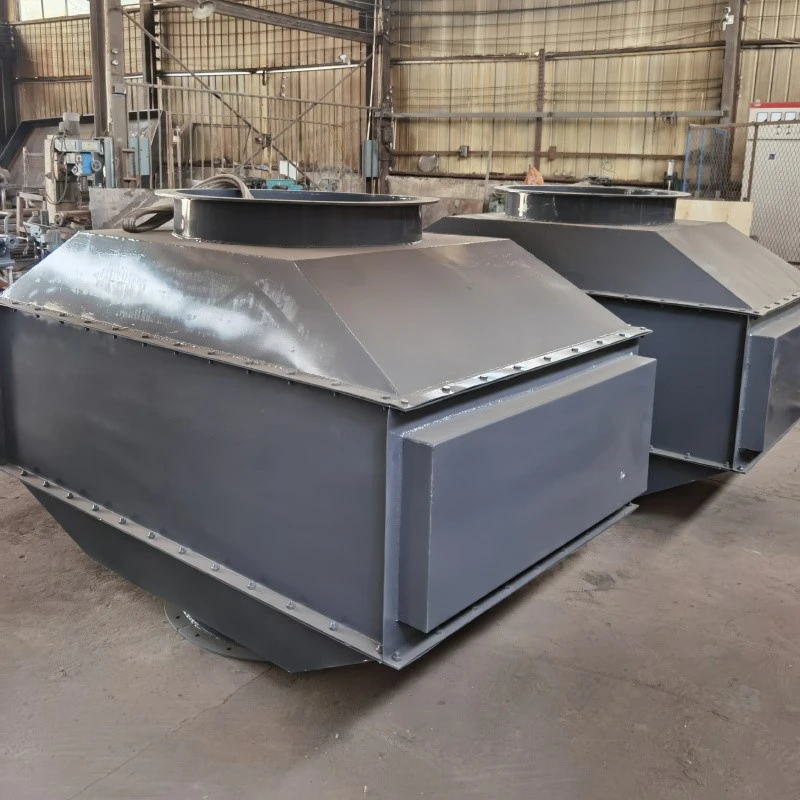

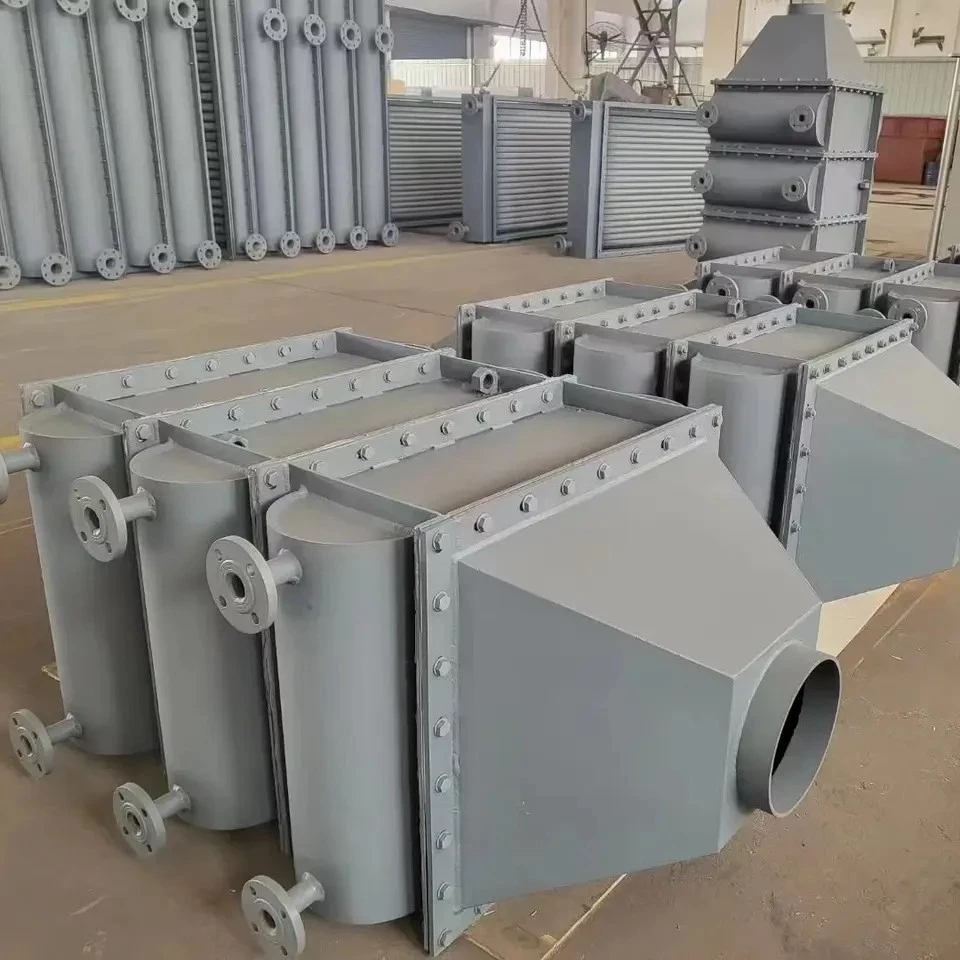

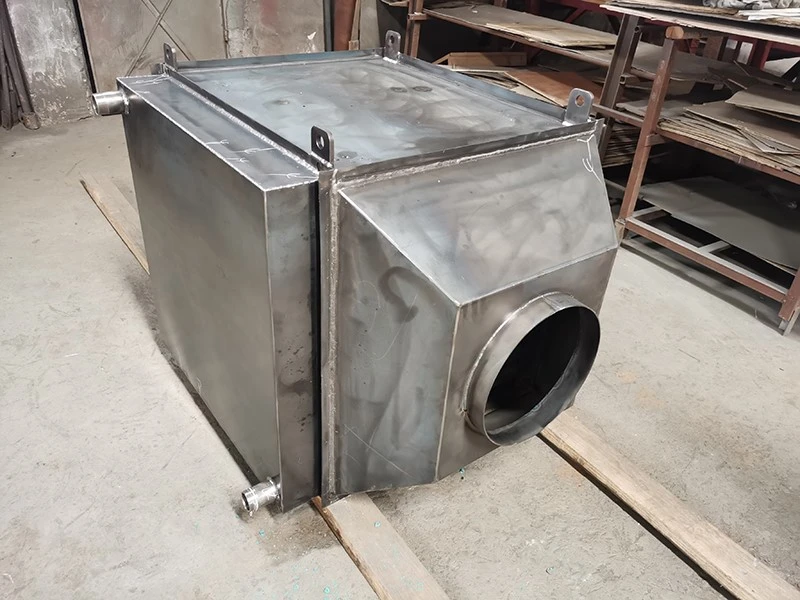

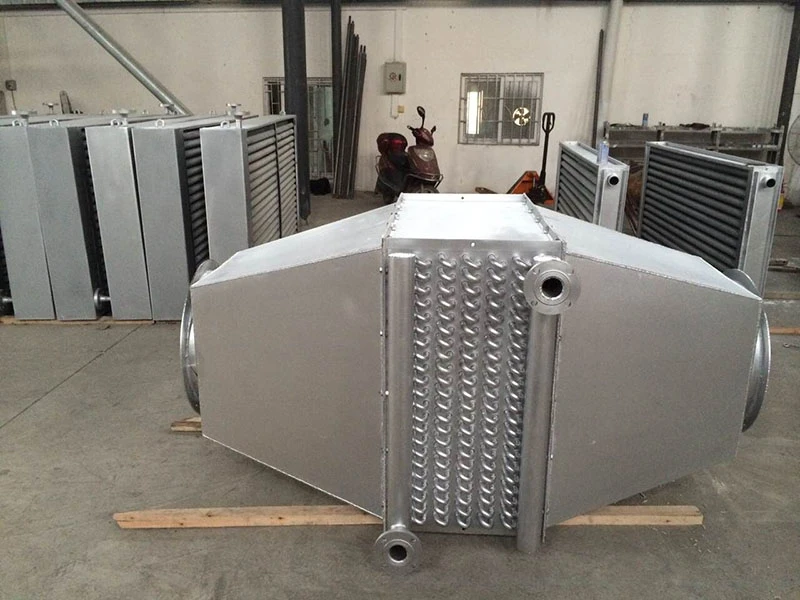

Industrial Finned Tube Economizer Ɔhyew a Wɔde Yɛ Nneɛma a Wɔsɛe no
Ma Ahoɔden a Wɔkora So Kɛse: Ano aduru a Ɛkɔ Anim a Wɔde Yɛ Ɔhyew a Wɔsɛe no
Fa yɛn Corrosion-Resistant Stainless Steel Heat Exchanger no tew pɛtro ho ka so. Wɔayɛ no ama mframa a wɔde gu mu a ɛyɛ hyew, na ɛsan nya ɔhyew a wɔsɛe no ma nsu a wɔde yɛ nsu ne mfiri a wɔde tintim nhoma. Saa adeɛ yi hwɛ hu sɛ wɔbɛkora sika so berɛ tenten-na ɛbɛtena hɔ akyɛ wɔ mmeaeɛ a acid-dɔɔso wɔ baabi a carbon dadeɛ di nkoguo.
Mfaso Titiriw a Ɛwɔ So
Ahoɔden a Wɔkora So:Ɛsan nya ɔhyew a efi mu ba no ma ɛyɛ ntɛm ma nsu/mframa yɛ hyew, na ɛkora pɛtro 15% so.
Nsuo a Ɛyɛ Oval:Aerodynamic oval design brɛ mframa a ɛko tia ne fan ahoɔden adesoa ase.
Ntintim a Wɔde Di Dwuma:Ɛyɛ pɛpɛɛpɛ ma ɔhyew a ɛyɛ pɛpɛɛpɛ a wobɛkɔ so akura ngo a ɛyɛ hyew nhyehyɛe ahorow mu.
Nneɛma a Wɔyɛ no Yiye a Ɛkorɔn:Spiral fins ma soro beae kɛse ma ɔhyew a ɛkɔ ntɛmntɛm.
Adanse a ɛkyerɛ sɛ nsu a ɛretu:High-frequency welding hwɛ hu sɛ 100% bond wɔ fin ne tube ntam.
Amanneɛbɔ Kɛse:Nsusuwii a wɔayɛ no sɛnea ɛbɛyɛ a wɔbɛsan asiesie boiler anaa dryer ducts a ɛwɔ hɔ dedaw no.
Ɛnyɛ den sɛ wobɛhohoro:Nsõ a ɛnyɛ den a ɛyɛ torotoro no mma nsõ ntumi nkɔ so na ɛma ɛyɛ mmerɛw sɛ wɔbɛhohoro.
Sɛnea ɛtra hɔ kyɛ:Wɔayɛ ama 15+ mfeɛ a wɔde bɛsom wɔ nnuru a ɛyɛ den mu.
Temp a Ɛkorɔn:Etumi di ɔhyew a ɛkɔ soro kodu digrii 500 ho dwuma wɔ ɔkwan a wotumi de ho to so.
Mfiridwuma Ho Nsɛm a Wɔakyerɛkyerɛ Mu

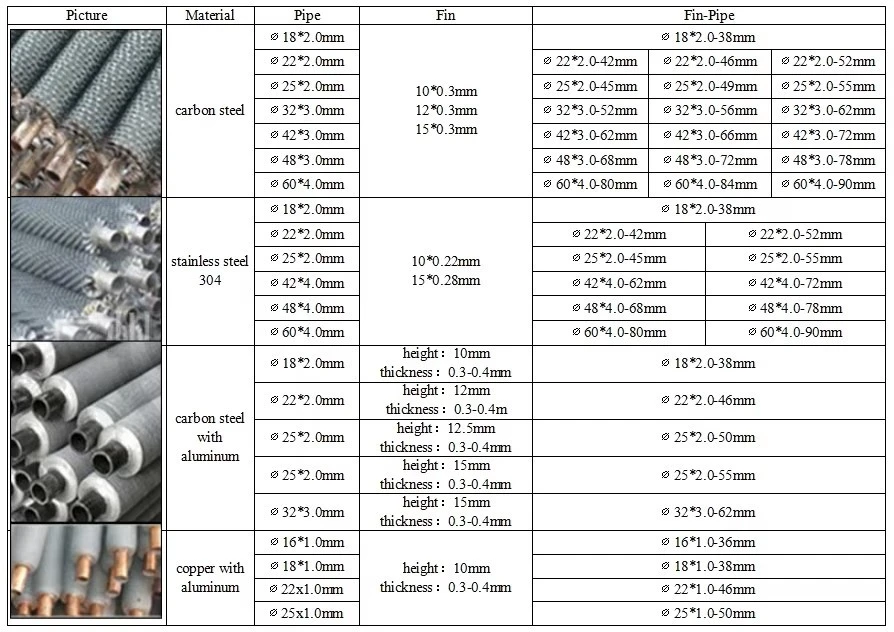

● Tube & Fin Nneɛma: Kɔbere, CuNi, Dade a ɛnyɛ den, Aluminium, Dade a wɔde hyɛ ɔhyew mu, Titanium
● Fin Mfiridwuma: High-Frequency Welding / Laser Welding
● Ɔhyew a Wɔde Yɛ Adwuma Yiye: bɛboro 95%:
● Ɔhyew a Wɔde Kɔ: 5–500 m2 (wobetumi ayɛ no sɛnea wopɛ) .
● Nhyɛso a Ɛsen Biara: 0.5–4.0 MPa (72–580 psi) .
● Mframa a ɛsen: 500–50,000 m3/h
● Max Adwumayɛ Temp:Ɛkɔ 800 digrii (Customizable)
● Nhyɛso a Ɛkɔ fam (Mframa)50–300 Pa (0.2–1.2 inH2O) .
● Nsusuwii Gyinapɛn: ASME / GB / ISO 9001
● Ɔhyew a Wɔde Yɛ Adwuma: Nsu a Ɛyɛ Nsuonwini, Ngo a Ɛma Ɔhyew, Nsu a Ɛyɛ Hɔ
Nnwuma a Wɔde Di Dwuma
● Gas/Oil a Wɔde Yɛ Boiler Exhaust
● Ntama a Wɔde tintim Stenter Mfiri
● Nnuru a Wɔde Yɛ Mframa a Wɔsɛe no a Wɔsan Yɛ
● Fononoo a Wɔde Yɛ Aduan a Wɔde Yɛ Aduan
● Nnuruyɛ mu Clean Room Heating
● Po mu Engine a Ɛma Mframa Ahoɔhare Ho Sikasɛm
● Mframa a Wɔde Ma Mframa a Wɔde Yɛ Krataa
Nneɛma Titiriw a Ɛwɔ Hɔ
2. Advanced Oval Tube mfiridwuma a ɛwɔ hɔ ma mframa a ɛkɔ yiye.
3.Strict pasivation ayaresa ma enhance corrosion resistance.
4. Customizable fin pitch de di efĩ anaa abɔde nketenkete-heavy flue gas ho dwuma.
5. Aduan-grade gyinapɛn ahorow a wɔde di dwuma wɔ ahotew ho a wobedi so.
Nea Enti a Wopaw Yɛn
Industry Coverage & Nneɛma a Wɔde Ma
Yɛde ɔhyew sesafo a ɛsom mfiridwuma, aduan & anonne, HVAC, po so, mframa ho dwumadie ne onwini, petrochemical, anyinam ahoɔden, ne frigye nnwuma ahodoɔ a ɛyɛ pɛpɛɛpɛ ma.
1) Yɛde mmoa a edi mũ ma fi nneɛma nhyehyɛe so kosi nneɛma a wɔyɛ so, yɛyɛ adwuma wɔ wo nkyerɛkyerɛmu ahorow mu anaasɛ yɛyɛ biako wɔ nhyehyɛe ahorow a wɔahyɛ da ayɛ ho.
2) Wɔde yɛn nneɛma akɔ aman pii so wɔ wiase nyinaa, a Israel, USA, Germany, ne Canada ka ho.
3)hwɛ hu sɛ wobebua wo nsɛmmisa ntɛmntɛm, mpɛn pii no wobua wɔ nnɔnhwerew 24 ntam. Sɛ nsɛm a egye ntɛmpɛ a, yɛsrɛ wo ntwentwɛn wo nan ase sɛ wobɛfrɛ yɛn tẽẽ. 4)Yɛasi yɛn bo sɛ yɛde ɔsom a etu mpɔn, su a wotumi de ho to so, na yɛakura din pa mu. 5)OEM&ODM,Yɛwɔ ɔhyew sesa nhyehyɛe softwea a Guentner ne Cabero de redi dwuma, Yɛde ɔhyew ne onwini unit a wɔayɛ no sɛnea wɔpɛ-ma.
Engineering Design a Wɔde Yɛ Nneɛma
Yɛde HTRI ne EDR design software a efi Europa software a wagye din hɔ nkutoo na edi dwuma.
Yɛde mfeɛ 18 ayɛ adwuma wɔ ɔkwan pa so no, yɛatumi ayɛ ɔhyew a wɔde sesa nneɛma, ayɛ, na yɛde akɔ aman bɛboro 50 so wɔ wiase nyinaa.
Adetɔfo nsɛm a wɔka si so dua bere nyinaa sɛ onwini adwumayɛ ankasa ne nsusuwii mu nhyehyɛe gyinapɛn ahorow hyia pɛpɛɛpɛ.

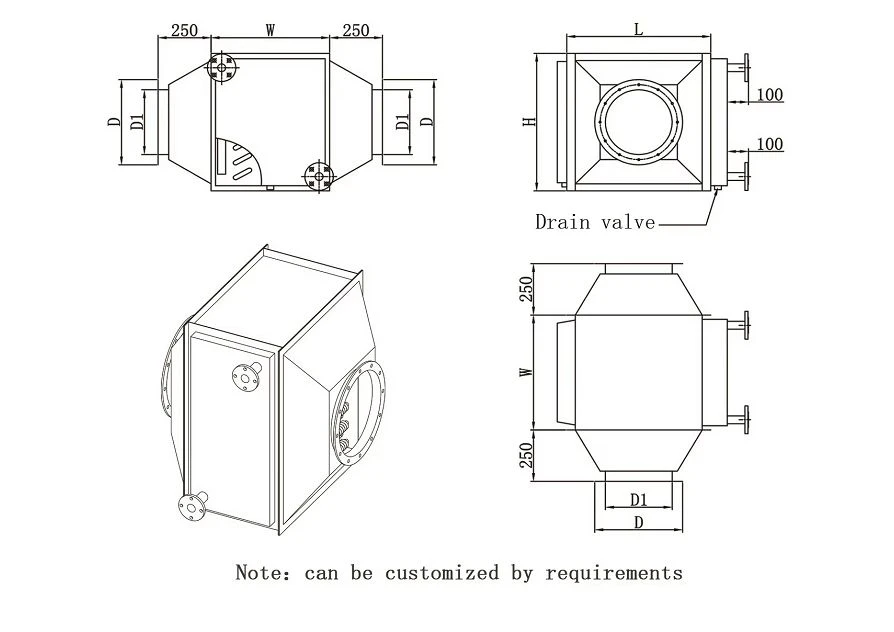

Yebetumi de mfonini a ɛkɔ akyiri ama wɔ wo krataa no akyi. Yebetumi nso de Custom services ama .
|

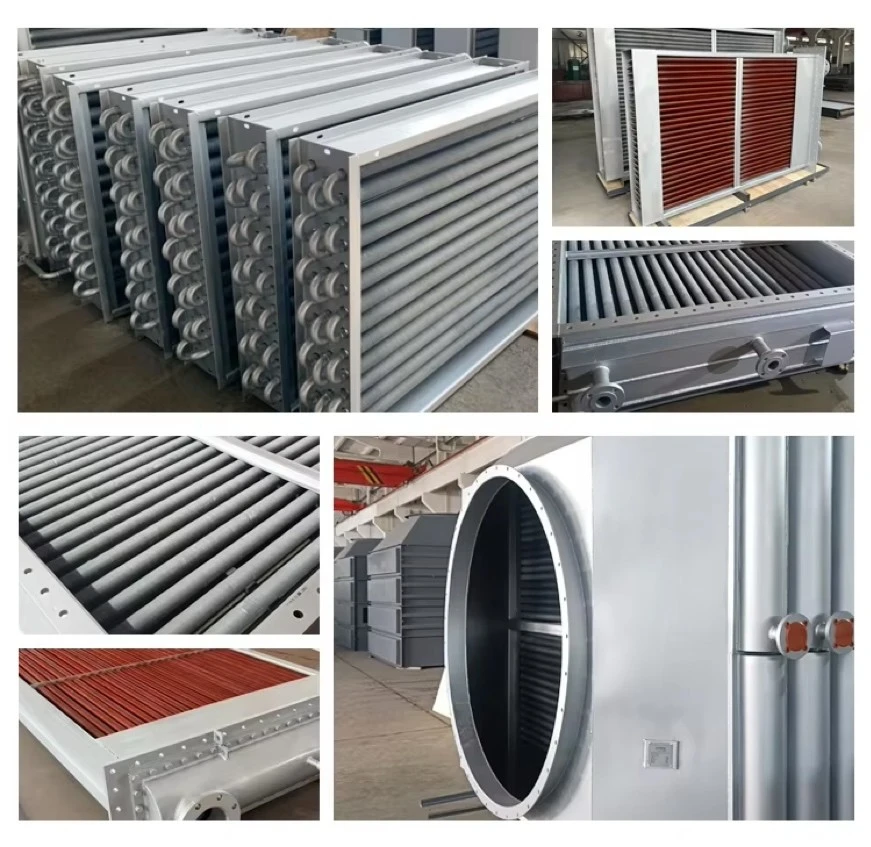

Yɛn Boiler Economizer Nneɛma a Ɛwɔ Hɔ |
|
|
Adwumayɛ ho Nkyerɛkyerɛmu |
● Ɔhyew a Wɔde Kɔ: 5–500 m2(wotumi sesa) ● Nsuonwini Nhyɛso a Ɛsen Biara: 0.5–4.0 MPa (72–580 psi) . ● Nsuo a Ɛyɛ Hu: Digrii 100–500 (digrii F 212–932) . ● Mframa a ɛsen: 500–50,000 m3/h ● Ɔhyew a Wɔde Yɛ Adwuma Yiye: bɛboro 95% . ● Nhyɛso a Ɛkɔ fam (Mframa): 50–300 Pa |
|

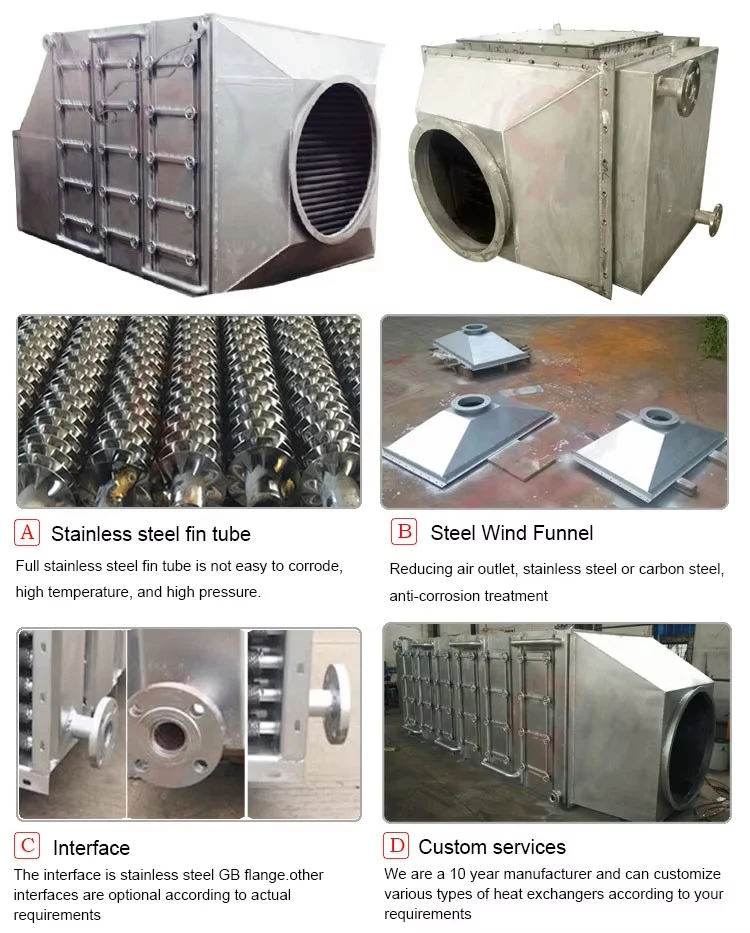

Ɔhyew Mprɛte/Nsukorabea |
● Nneɛma: Kɔbere, CuNi, Dade a ɛnyɛ den, Aluminium, carbon dade, Titanium(customizable) ● Nea eye sen biara ma: Corrosive/High-Temp Steam |
|
Airside Fins a Ɛyɛ Fɛ |
● Nneɛma: Aluminium, Corten Dade(a wotumi sesa) ● Nea eye sen biara ma: Mframa a Mfutuma/Asidi wom |
|
Gasket/Nsɔano |
● Nneɛma a wɔde yɛ: EPDM, PTFE, Graphite ● Nea eye sen biara ma: Steam Leak Prevention |
|
Frame/Casing a Wɔde Yɛ Nneɛma |
● Nneɛma a wɔde yɛ: Carbon Steel (Wɔayɛ ho adwini),SS304 ● Nea eye sen biara ma: Nneɛma a Wɔde Sisi Nneɛma a Ɛyɛ Den |
|
Sɔhwɛ |
Wɔde ɔhyew a wɔde sesa nneɛma ma a ɛho tew na wɔsɔ hwɛ wɔ nhyɛso a ɛyɛ 30 bars mu |
|
Nneɛma a Wɔapaw a Wɔde Yɛ Nneɛma a Wɔde Yɛ Adwuma |
● Ɔpae-Adanse Nsusuwii(ATEX/ICEx adansedi krataa) ● Self-Cleaning Mechanisms(Ma mframa a mfutuma wom dwumadie) ● Hybrid MVR(Mfiri a Wɔde Yɛ Vapor Recompression) Nkabom |

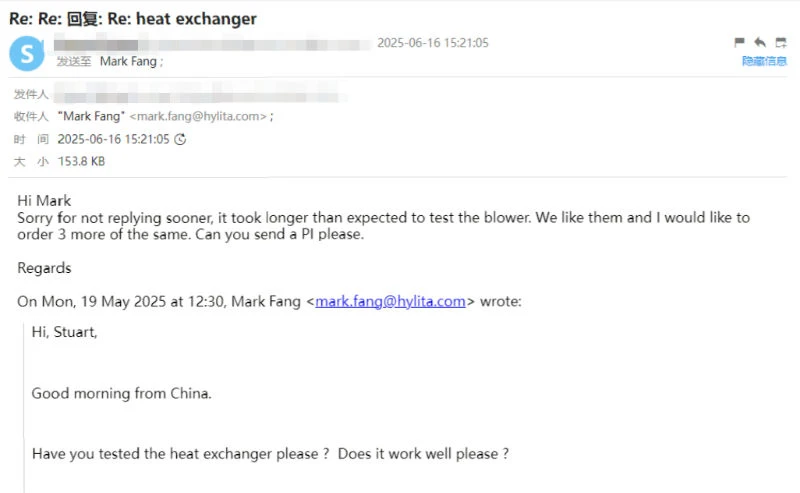

Adetɔfo Asɛm Mfonini
Dwumadi: Po mu Diesel Exhaust Ɔhyew Recovery Nneɛma: Tube
- Dade a Ɛnyɛ Den 304; Fin
- Aluminium (a wɔde nsuo a ɛkata so) Tumi a wɔde ma: 230V / 1P / 50Hz
Dwumadi: Hot Blast Stove Flue Gas Ɔhyew a Wɔsan Yɛ
Nneɛma: Tube & Fin - Corten Dade (ND Dade) Tumi a wɔde ma: 415V / 3P / 50Hz
Dwumadi: Nnuruyɛ kwan Gas Cooling & Steam Generation
Nneɛma a wɔde yɛ: Tube - Stainless Steel 316L; Fin - 316L Tumi a Wɔde Ma: 400V / 3P / 50Hz
Dwumadi: Textile Tenter Frame Exhaust Ɔhyew a Wɔsan Yɛ
Nneɛma a wɔde yɛ: Tube - Carbon Steel (galvanized); Fin - Aluminium Tumi a Wɔde Ma: 400V / 3P / 50Hz
Dwumadi: Aduan Sterilization Flash Steam Recovery
Nneɛma a wɔde yɛ: Tube - Kɔbere; Fin - Kɔbere Tumi a Wɔde Ma: 480V / 3P / 60Hz
Dwumadi: Cement Kiln Fi Gas Ɔhyew a Wɔsan Yɛ
Nneɛma a wɔde yɛ: Tube- Carbon Steel; Fin- Carbon Steel (Aluminized) Tumi a Wɔde Ma: 380V / 3P / 50Hz
Dwumadi: Sintering Fononoo Exhaust Steam Recovery
Nneɛma a wɔde yɛ: Tube - Alloy Steel (15CrMo); Fin- Dade a ɛnyɛ den 321 Tumi a wɔde ma: 380V / 3P / 60Hz
Dwumadi: Gas Boiler Flue Gas Condensing Ɔhyew a wɔsan nya

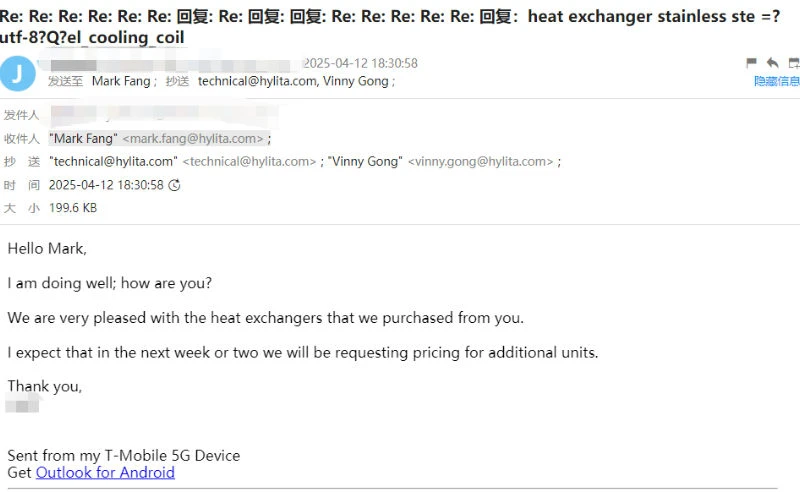

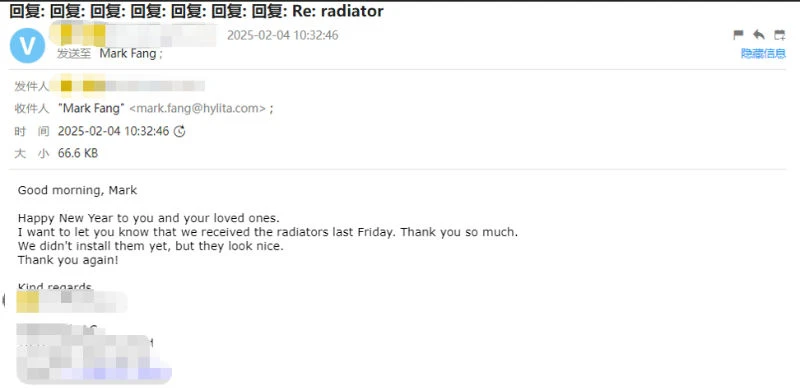

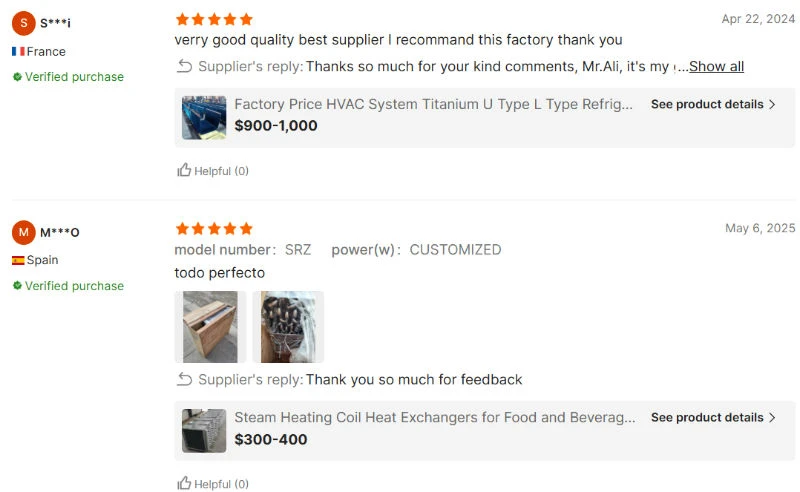

Nneɛma a wɔde yɛ: Tube - Stainless Steel 316L; Fin- Aluminium (a epoxy a wɔde akata so) Tumi a wɔde ma: 400V / 3P / 50Hz Adetɔfoɔ Nsɛm

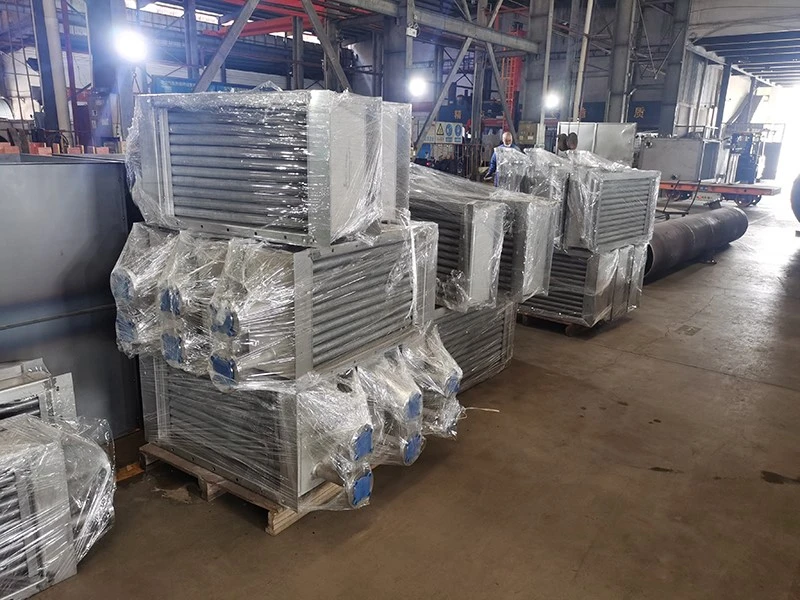

Nneɛma a Wɔde Gu Mu & Wɔde Kɔma
Standard packaging yɛ nnua nnaka.
Sɛ wɔde kɔ Europa aman mu a, wɔde wusiw yɛ nnua nnaka no.
Sɛ baabi a wɔde nneɛma gu mu no sua a, yebetumi adan akɔ PE sini a wɔde kyekyere nneɛma so anaasɛ yɛagye nneɛma a wɔde kyekyere nneɛma ho adesrɛ titiriw a efi adetɔfo hɔ.

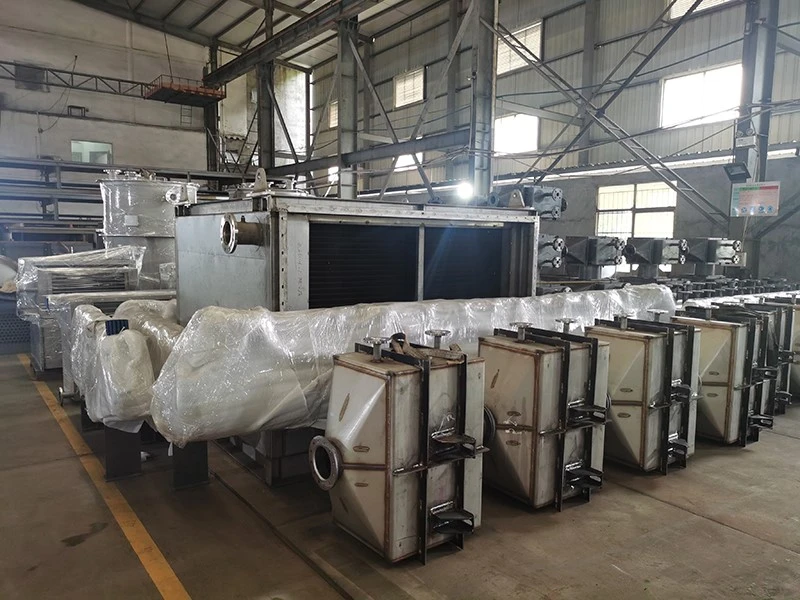

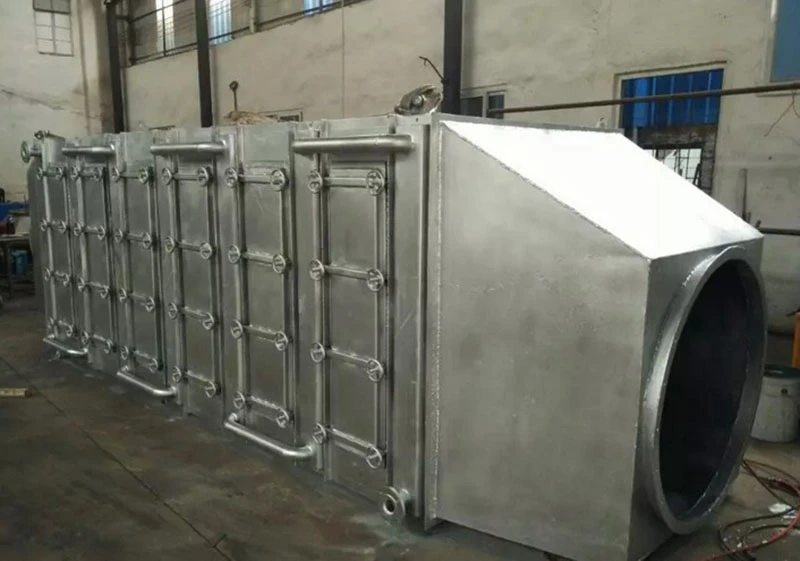

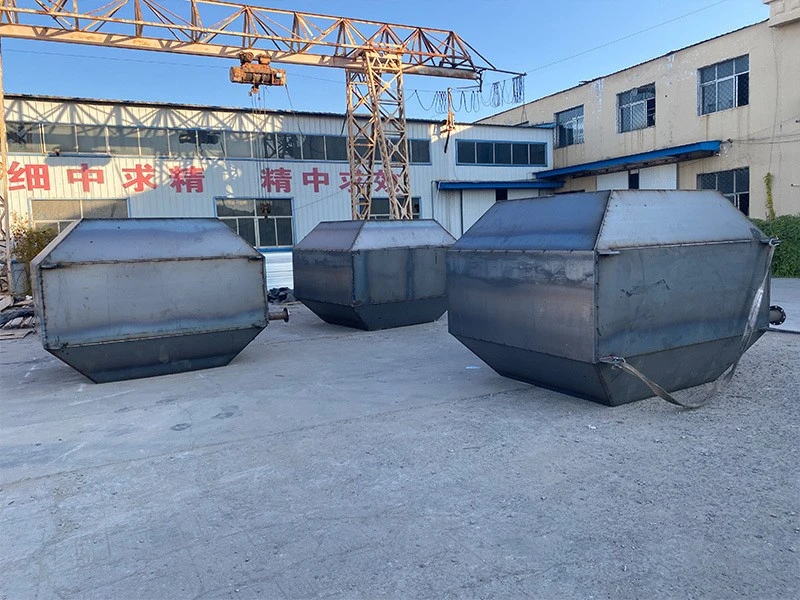

Yɛn Nnwumayɛbea a Yɛyɛ Nneɛma
dɛn nti na yɛpaw yɛn nneɛma
Shenzhen Hylita Ɔhyew Sesafo Co., Ltd.
Yɛn adwumayɛbea ti wɔ Shenzhen, na baa dwumadibea ahorow wɔ Guangzhou, Tangshan, ne Wuhan.
Yɛde ɔhyew sesafo a ɛsom mfiridwuma, aduan & anonne, HVAC, po so, mframa ho dwumadie ne onwini, petrochemical, anyinam ahoɔden, ne frigye nnwuma ahodoɔ a ɛyɛ pɛpɛɛpɛ ma.
Heat recovery units( Boiler Economizers) wɔ hɔ wɔ direct-replacement models (100% a ɛne OEM nkyerɛkyerɛmu hyia) ne nhyehyeɛ a wɔayɛ no pɛpɛɛpɛ a wɔayɛ no sɛdeɛ ɛbɛyɛ a ɛbɛdi dwumadie ahwehwɛdeɛ pɔtee ho dwuma.
FAQ
1.Order Ahobammɔ & Intanɛt so Nkitahodi
Q: So yebetumi akra denam Alibaba Trade Assurance so ama ahobammɔ?
A: Yiw, yɛhyɛ ho nkuran kɛse! Trade Assurance ma wo sikatua ho ban 100%. Combined with our 10-year manufacturing history , wubetumi de ahotoso koraa ayɛ wo krataa a edi kan.
2. Nneɛma Pa a Wɔhwɛ So
Asɛmmisa: Wobɛyɛ dɛn ahwɛ ahu sɛ ɛyɛ papa ansa na wode amena?
A: Yɛn din no yɛ nea wɔde asi 4 core quality pillars so
✅ Osuahu: Ɔyɛfoɔ titire firi afe 2015 (10+ Mfeɛ) .
✅ Adansedi ahorow: ISO 9001:2015, CE, ROHS
✅ Awerɛhyem: 100% nhyɛso sɔhwɛ wɔ unit biara so ansa na wɔde amena
✅ Wiase Nyinaa Ahotoso: Wɔsom afɛfo wɔ aman bɛboro 50+ mu yiye .
3. Nsusuwii & Nkontaabu
Asɛmmisa: Mfonini biara nni hɔ? So wubetumi ayɛ mfonini ama me?
A: Yiw! Yɛde HTRI softwea di dwuma ma ɛyɛ pɛpɛɛpɛ. Kyɛ wo dwumadie data (Temp/Flow) kɛkɛ, na yɛde adwumayɛfoɔ nhyehyɛɛ bɛma wo ama woapene so.
4. Nneɛma a Wɔkra a Ɛba Fam (MOQ) .
Asɛmmisa: Dɛn ne MOQ no? So metumi ayɛ order nketewa mesrɛ wo ?
A: Small order nso yɛ akwaaba wɔ yɛn company.
5. Waranti Dwumadibea
Asɛmmisa: Bere tenten ahe na warranty coverage no yɛ?
A: Yɛde warranty options a ɛyɛ mmerɛw ma ma ɛne w’ahiade hyia:
✅ Standard: 12-Ɔsram ma ahyɛde nyinaa.
✅ Wɔatrɛw mu: Ɛkɔsi 24-Month ma fata customized orders (si so dua ne yɛn kuw).
6. Nneɛma a wɔyɛ no sɛnea wɔpɛ
Q: So woboa OEM / ODM ne amanne branding?
A: Yiw, customization a edi mũ wɔ hɔ . Yɛboa nneɛma a wɔahyɛ da ayɛ (Copper, SS304/316, Cu-Ni) na yɛde Laser Marking & Nameplates ma de kyerɛ wo logo no pɛpɛɛpɛ.
7. Ɔsom Ahofama
Asɛmmisa: Ɔkwan bɛn so na woma mehu me nneɛma a mekrae no?
A: Yɛhwɛ hu sɛ 100% Process Transparency
✅ Double Confirmation: Wɔagye specs nyinaa atom ansa na wɔafi ase ayɛ..
✅ Visual Updates: Yɛde mfonini/video ahorow a ɛkyerɛ nkɔso a aba wɔ adwumayɛ mu no mena.
✅ Nwoma mu Nhwehwɛmu: Nwoma (B/L, Invoice) a wɔde amena sɛ wɔmfa nnye ntom ansa na wɔde ama awieɛ na wɔakwati mfomsoɔ.
8. Nneɛma Titiriw a Wɔyɛ
Asɛmmisa: Dɛn ne nneɛma atitiriw a woyɛ ?

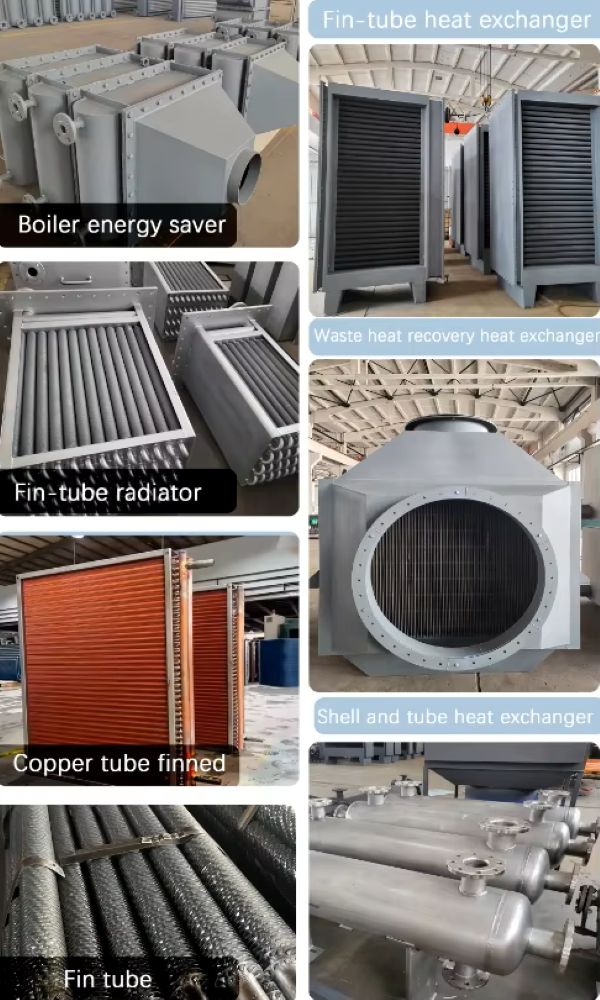

A: Yɛyɛ titiriw mframa ɔhyew exchangers, soro coolers, evaporator coils, condenser coil, shell ne tube ɔhyew exchangers, mprɛte ɔhyew exchangers ne afoforo ɔhyew nsakrae nnwinnade ne finned tubes ahorow nyinaa, ɔhyew nsakrae nneɛma, ne nea ɛkeka ho.
